Why choose the genuine Brother BSP-1D600-110 ribbon

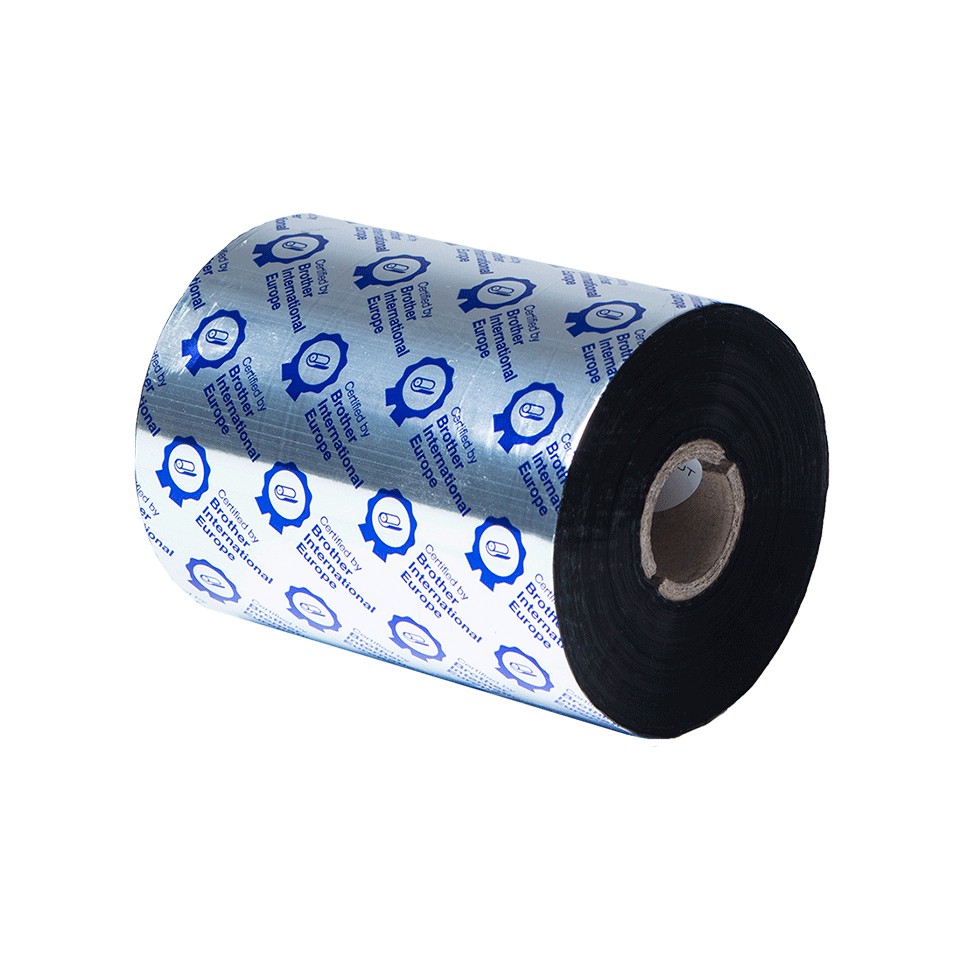

The BSP-1D600-110 is a genuine Brother premium wax-resin ribbon. The wax and resin blend gives a print that resists abrasion, moisture and smudging better than wax alone while staying versatile: coated paper, glossy paper and some synthetic media (polypropylene, polyethylene). It is the middle choice for product labels, traceability and handled parcels. The premium version brings higher ink density, better smudge resistance and a wider temperature setting range than the standard version. Genuine Brother ribbon certified for TD and TJ printheads: even ink layer, crease-free unwinding, antistatic backcoat that protects the head.
Wax, wax-resin or resin: which ribbon?
Wax for everyday paper labels at the lowest price, wax-resin for labels that will be handled or exposed to moisture, resin for synthetic media and harsh environments. Premium when density, speed or smudge resistance matter. All compositions come in 110 mm x 600 m: BWP-1D600-110 (wax premium), BWS-1D600-110 (wax standard), BSP-1D600-110 (wax-resin premium), BSS-1D600-110 (wax-resin standard), BRP-1D600-110 (resin premium), BRS-1D600-110 (resin standard). The ribbon must be at least as wide as the media; pick the width just above your labels to limit waste.
Printers compatible with the BSP-1D600-110
The BSP-1D600-110 (110 mm x 600 m) is intended for 4 Brother models (manufacturer list):
300 m rolls are for TD-4T desktop printers, 450 m and 600 m rolls for 4-inch TJ industrial printers, 154 mm rolls for 6-inch TJ printers. Check the exact reference of your printer, suffix included.
Length and yield
600 m of ribbon per roll, 6 rolls per box, 3600 m in total. In thermal transfer the ribbon advances with the media: one roll covers about 600 m of labels whatever the print coverage, for example about 8,108 labels 74 mm high or 4,000 labels of 150 mm (excluding gaps and ribbon-save mode depending on the model).
Installation
Open the cover, place the BSP-1D600-110 roll on the supply spindle and an empty core on the take-up spindle, route the ribbon under the printhead as shown in the printer guide (winding direction printed on the box), tension the ribbon and close. The printer recalibrates the media and detects the ribbon on the first job. Clean the printhead with isopropyl alcohol at every roll change and keep the ribbon in its box, away from dust and heat.
Usage and advice
The BSP-1D600-110 suits product labels, compliance labels and parcels handled or stored in damp conditions, on BCS coated paper or smooth synthetic film: the print withstands handling and conveyors. It is the all-round ribbon for a fleet printing on several media types.
Tips: store the boxes flat, between 5 and 35 °C, away from sunlight and dust, and use the rolls within a year. Match head temperature and speed to the ribbon + media pair (a wax ribbon prints faster and cooler than a resin ribbon); a pale or rubbing-off print points to a setting that is too low or unsuitable media, a dirty head or a creased ribbon. The box of 6 rolls covers several months of sustained printing; order the same ribbon for all printers on a line to unify the settings.
Specifications
| Manufacturer part number | BSP-1D600-110 (BSP1D600110) |
|---|---|
| EAN code | 5014047600586 |
| Type | Genuine Brother ribbon (OEM) |
| Technology | Thermal transfer |
| Ink color | Black |
| Composition | Wax-resin |
| Grade | Premium |
| Width | 110 mm |
| Length | 600 m |
| Pack size | 6 rolls per box |
| Net weight | 610 g |
| Product dimensions (W x D x H) | 85 x 85 x 110 mm |
| Origin | Spain |
| Compatible printers | 4 Brother TD/TJ models |
Related products
Frequently asked questions
Is the BSP-1D600-110 compatible with my Brother printer?
Yes if it is in the list above (TJ-4420TN to TJ-4522TN). If in doubt, compare the exact reference of your printer, suffix included.
What is the difference between wax, wax-resin and resin?
Wax is the cheapest and suits paper; wax-resin resists rubbing and moisture better; resin gives a near-indelible print on synthetic films, for chemical, outdoor or chilled environments.
Which labels should I use with the BSP-1D600-110?
Coated paper labels (BCS range) or smooth synthetic films; it also works on uncoated paper.
How many rolls does the reference contain?
The box contains 6 rolls of 110 mm x 600 m; the price shown is for the box.
Where can I find the safety data sheet (SDS) for the BSP-1D600-110?
On our Brother support page: safety data sheet for the BSP-1D600-110 in your language, manuals and FAQ for the compatible printers.
