Why choose the genuine Brother BWS-1D450-110 ribbon

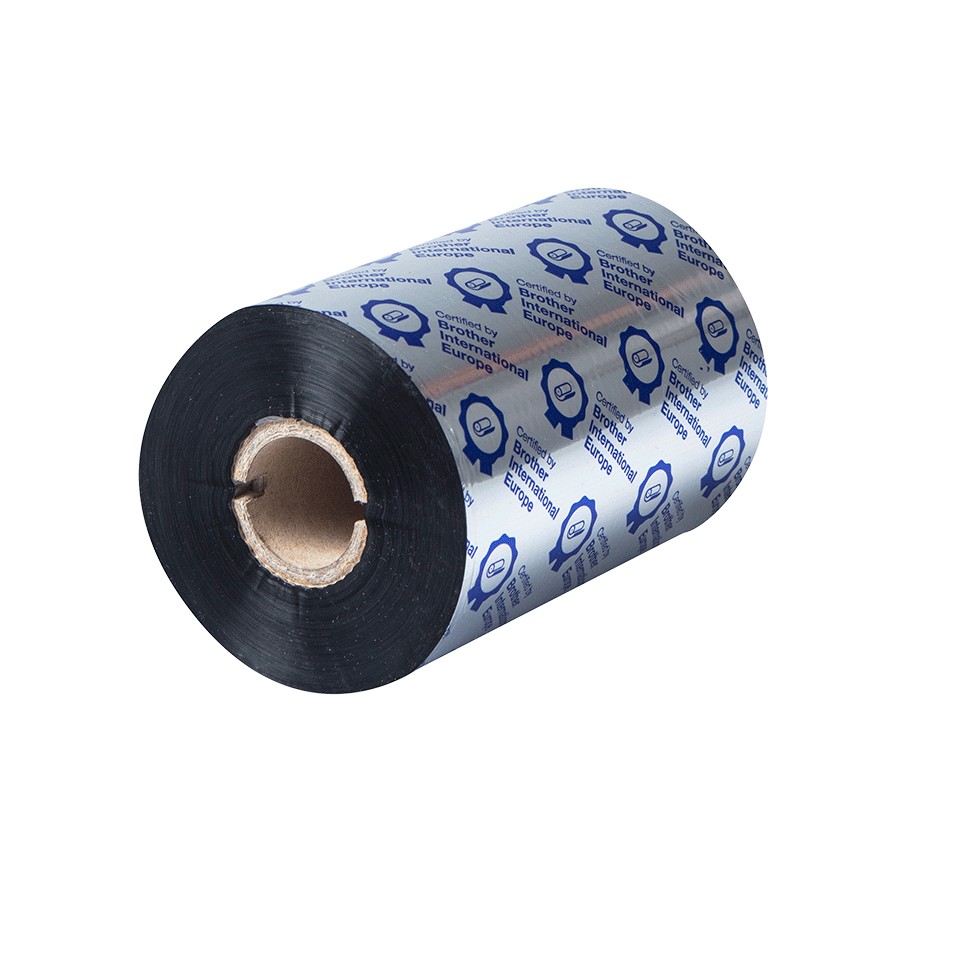

The BWS-1D450-110 is a genuine Brother standard wax ribbon. Wax-based ink melts at low energy: the printhead runs cool, high speeds are possible and it is the most economical ribbon. It is meant for paper labels (uncoated or coated) in logistics, shipping and shelf labeling: sharp barcodes and legible text, for indoor use without heavy abrasion. The standard version covers everyday needs at the best price; the premium version exists for demanding media. Genuine Brother ribbon certified for TD and TJ printheads: even ink layer, crease-free unwinding, antistatic backcoat that protects the head.
Wax, wax-resin or resin: which ribbon?
Wax for everyday paper labels at the lowest price, wax-resin for labels that will be handled or exposed to moisture, resin for synthetic media and harsh environments. Premium when density, speed or smudge resistance matter. All compositions come in 110 mm x 450 m: BWP-1D450-110 (wax premium), BWS-1D450-110 (wax standard), BSP-1D450-110 (wax-resin premium), BSS-1D450-110 (wax-resin standard), BRP-1D450-110 (resin premium), BRS-1D450-110 (resin standard). The ribbon must be at least as wide as the media; pick the width just above your labels to limit waste.
Printers compatible with the BWS-1D450-110
The BWS-1D450-110 (110 mm x 450 m) is intended for 6 Brother models (manufacturer list):
300 m rolls are for TD-4T desktop printers, 450 m and 600 m rolls for 4-inch TJ industrial printers, 154 mm rolls for 6-inch TJ printers. Check the exact reference of your printer, suffix included.
Length and yield
450 m of ribbon per roll, 8 rolls per box, 3600 m in total. In thermal transfer the ribbon advances with the media: one roll covers about 450 m of labels whatever the print coverage, for example about 6,081 labels 74 mm high or 3,000 labels of 150 mm (excluding gaps and ribbon-save mode depending on the model).
Installation
Open the cover, place the BWS-1D450-110 roll on the supply spindle and an empty core on the take-up spindle, route the ribbon under the printhead as shown in the printer guide (winding direction printed on the box), tension the ribbon and close. The printer recalibrates the media and detects the ribbon on the first job. Clean the printhead with isopropyl alcohol at every roll change and keep the ribbon in its box, away from dust and heat.
Usage and advice
The BWS-1D450-110 suits shipping, shelf, parcel and internal traceability labels on paper, printed in volume: it is the lowest cost per label. Pair it with BUS uncoated or BCS coated paper labels from the same range; avoid synthetic films and labels exposed to repeated rubbing, which need a wax-resin or resin ribbon.
Tips: store the boxes flat, between 5 and 35 °C, away from sunlight and dust, and use the rolls within a year. Match head temperature and speed to the ribbon + media pair (a wax ribbon prints faster and cooler than a resin ribbon); a pale or rubbing-off print points to a setting that is too low or unsuitable media, a dirty head or a creased ribbon. The box of 8 rolls covers several months of sustained printing; order the same ribbon for all printers on a line to unify the settings.
Specifications
| Manufacturer part number | BWS-1D450-110 (BWS1D450110) |
|---|---|
| EAN code | 5014047600517 |
| Type | Genuine Brother ribbon (OEM) |
| Technology | Thermal transfer |
| Ink color | Black |
| Composition | Wax |
| Grade | Standard |
| Width | 110 mm |
| Length | 450 m |
| Pack size | 8 rolls per box |
| Net weight | 470 g |
| Product dimensions (W x D x H) | 70 x 70 x 110 mm |
| Origin | Spain |
| Compatible printers | 6 Brother TD/TJ models |
Related products
Frequently asked questions
Is the BWS-1D450-110 compatible with my Brother printer?
Yes if it is in the list above (TJ-4020TN to TJ-4121TNR). If in doubt, compare the exact reference of your printer, suffix included.
What is the difference between wax, wax-resin and resin?
Wax is the cheapest and suits paper; wax-resin resists rubbing and moisture better; resin gives a near-indelible print on synthetic films, for chemical, outdoor or chilled environments.
Which labels should I use with the BWS-1D450-110?
Uncoated (BUS range) or coated (BCS range) paper labels; no synthetic film.
How many rolls does the reference contain?
The box contains 8 rolls of 110 mm x 450 m; the price shown is for the box.
Where can I find the safety data sheet (SDS) for the BWS-1D450-110?
On our Brother support page: safety data sheet for the BWS-1D450-110 in your language, manuals and FAQ for the compatible printers.
